Reusable laryngoscope tracheal intubation difficult intubation management
1. General endotracheal intubation
2. Double-lumen endobronchial intubation positioning
3. Difficult airway management
Features:
1, Familiar technique with Macintosh blade,direct and video visualization,gain the capabilities of two device in one ,additional difficult airway blade optional. Can cope with a majority of airway intubation.
2, it with take photos and video recording function, could record the case for sharing and teaching purpose.
3, Narrow blade profile,intubation feasibility improved for some samll mouth opening.
4, 3.0 inch monitor with 1200*1600px high resolution, .doctor can see glottis clearly
5, CE, ISO13485 approved
6, Private label and OEM design are acceptable
Blade:
1.A tool can make air-way intubation more rapid, accurate, as far as possible to reduce damage, and can cope with difficult airway effectively.
2. When facing critical patients, we make the functions of airway management system to be more thorough, convenient for operation.
3. Allow respond to emergency intubation patients and adapt to both indoor and outdoor resure enviroment.
4. Neonate delicate love and care, safer, reliable and suitable air-way management tool for neonate.
5. Haiye video laryngoscope with Smart Anti-Fog Technology, doctors will not face fog problem.
Application range:
Routine and difficult tracheal intubation, Could be used for doctors in Anesthesia,
ICU/NICU/CCU, Operating Room, Emergency Rescue, Ambulance,ENT etc.
Clinical training and teaching of tracheal intubation.
| Parts | Description | Technical Index |
| Machine | Display | 3inch LCD |
| Resolution | 960*480 (RGB) |
| Viewing angle | ≥70º+2 |
| Power | <2W |
| Display front and back rotation Angle | 0 º~130 º |
| Weight | 225g |
| Camera | Illuminance | ≥150 LUX |
| Resolution | 1200*1600 px |
| Image/Video function | Image/ Video function | Yes |
| Output | USB output, Easy to storage and establish image/video |
| Memory type | Micro SD card 8GB to 32 GB |
| Batterty | Battery Type | Rechargable lithium battery |
| Capacity | 3400mAh |
| Cycle life of battery | >600 times |
| Battery working time | >240min |
| Charging time | <2(hrs) |
| | Charging Port | Micro USB |
| Power Adapter | Input | 100-250V, 50 Hz. |
| Output | 5V1A |
Working
Condition | Temperature | -5℃~+50℃ |
| Humidity | 10%~90% |
| Air Pressure | 860~1060hpa |
Transport / Storage
Condition | Temperature | -10℃~50℃ |
| Humidity | ≤93% |
| Air Pressure | 500~1060hpa |
|
|

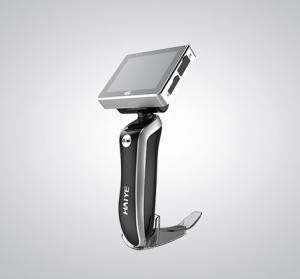

Medical equipment Portable used to baby Anesthesia Intubation reusable blade of video laryngoscope Images
|
